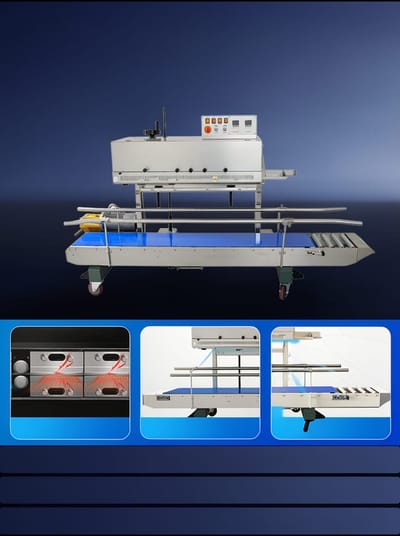

Continuous Band Sealer (Horizontal)
The standard sealing machine for pre-made bags on a production line. A horizontal band sealer carries the bag flat through a heated band, which gives a consistent seal at continuous speed and is the most cost-effective way to seal medium volumes of bagged product.
What this configuration means
Values are typical reference ranges. The final specification is confirmed per supplier route against your actual application.
| Orientation | Horizontal (vertical and tilted versions available) |
|---|---|
| Seal width | Commonly 6–15 mm |
| Speed | Typically 0–12 m/min, adjustable |
| Heating | Continuous band, thermostatically controlled |
| Conveyor | Adjustable height and angle on most models |
| Voltage | 220 V / 110 V depending on market |
| Typical use | Food bags, snacks, hardware, retail packs |
Where this machine is used
- Food and snack bag sealing
- Retail and e-commerce packing
- Hardware and small-part bags
- Small to medium production lines
What we need from you
- Bag material, thickness and width
- Seal width and pattern
- Throughput required per shift
- Whether date coding is needed
- Destination voltage and plug type
The options we compare for this machine
We do not publish factory names before you reach quotation stage. If we did, the cheapest quote would get copied within days and stop being real. So each option is shown by region and what stands behind it — names come when you are ready to order.
| Option | Quotes behind it | Made in |
|---|---|---|
| S012 | 20 | China |
| S014 | 9 | China |
| S009 | 4 | Zhejiang — Wenzhou |
| S022 | 4 | Guangdong — Guangzhou |
| S010 | 3 | China |
| S011 | 3 | Guangdong — Guangzhou |
| S013 | 3 | Zhejiang — Wenzhou |
| S018 | 3 | China |
| S021 | 3 | China |
| S023 | 3 | China |
| S016 | 2 | Zhejiang — Wenzhou |
| S025 | 2 | Zhejiang — Wenzhou |
| S019 | 1 | China |
| S020 | 1 | Guangdong — Guangzhou |
Straight answers on Continuous Band Sealer (Horizontal)
What film materials can a band sealer handle?
Heat-sealable films including PE, PP, laminates and foil structures. Very thick or very thin films need different temperature and speed settings. Tell us the bag structure.
Do I need a separate conveyor?
Most band sealers include an adjustable infeed conveyor. For high volume or unusual bag sizes, a separate infeed or outfeed table may help. We confirm what is included per route.
How is seal quality checked?
By testing seal strength on your actual film at production speed — not by looking at the machine. We recommend a sample run on your material before you commit to a line.
