1–1.5 Ton Electric Forklift
The most common entry point for a first electric counterbalance truck. At 1–1.5 tons you can handle standard pallets indoors, work in food plants without exhaust emissions, and still fit down reasonably narrow aisles. This is also the size where supplier quotes diverge most sharply, because the same nominal capacity can be built with very different battery capacity, mast sections and controllers.
Every layer, and what it is actually made of.
Scroll to separate the machine into its load-bearing layers. Each part carries the material grade, the tolerance that matters, the warranty position and the supply-chain note behind it.
Scroll to expand · drag to rotate · click a part to inspect
Select a part on the diagram to inspect its specification.
- Material
- Key tolerance
- Performance
Material grades, tolerances and warranty positions are shown as typical values for this configuration. They are confirmed in writing per supplier route before you commit — we do not publish a grade we have not verified.
What this configuration means
Values are typical reference ranges. The final specification is confirmed per supplier route against your actual application.
| Rated capacity | 1,000–1,500 kg |
|---|---|
| Load centre | 500 mm (confirm per route) |
| Lift height | 3,000–4,500 mm, mast dependent |
| Fork length | 1,070–1,150 mm |
| Power | Electric, 48 V class |
| Battery | Lead-acid or lithium; capacity confirmed per route |
| Charger | Included per supplier route, input voltage to your market |
| Tyre | Solid |
| Typical use | Standard pallets, indoor warehousing, food and packaging plants |
Where this machine is used
- General warehousing and distribution
- Food processing and packaging
- Light manufacturing and assembly
- Pharmaceutical and clean indoor handling
What we need from you
- Pallet weight and load centre
- Required lift height and free-lift need
- Aisle width and racking layout
- Shifts per day and charging window
- Whether the charger and battery are included in the price
The options we compare for this machine
We do not publish factory names before you reach quotation stage. If we did, the cheapest quote would get copied within days and stop being real. So each option is shown by region and what stands behind it — names come when you are ready to order.
| Option | Quotes behind it | Made in |
|---|---|---|
| S030 | 6 | Zhejiang — Huzhou |
| S031 | 1 | China |
| S032 | 1 | China |
| S034 | 1 | China |
Straight answers on 1–1.5 Ton Electric Forklift
What does '1.5 ton' actually mean?
It is the rated capacity at a 500 mm load centre with the mast vertical. Long loads, off-centre loads, or lifting to full height reduce the safe working load. We check the real load against the mast, not against the brochure number.
Do I need free lift?

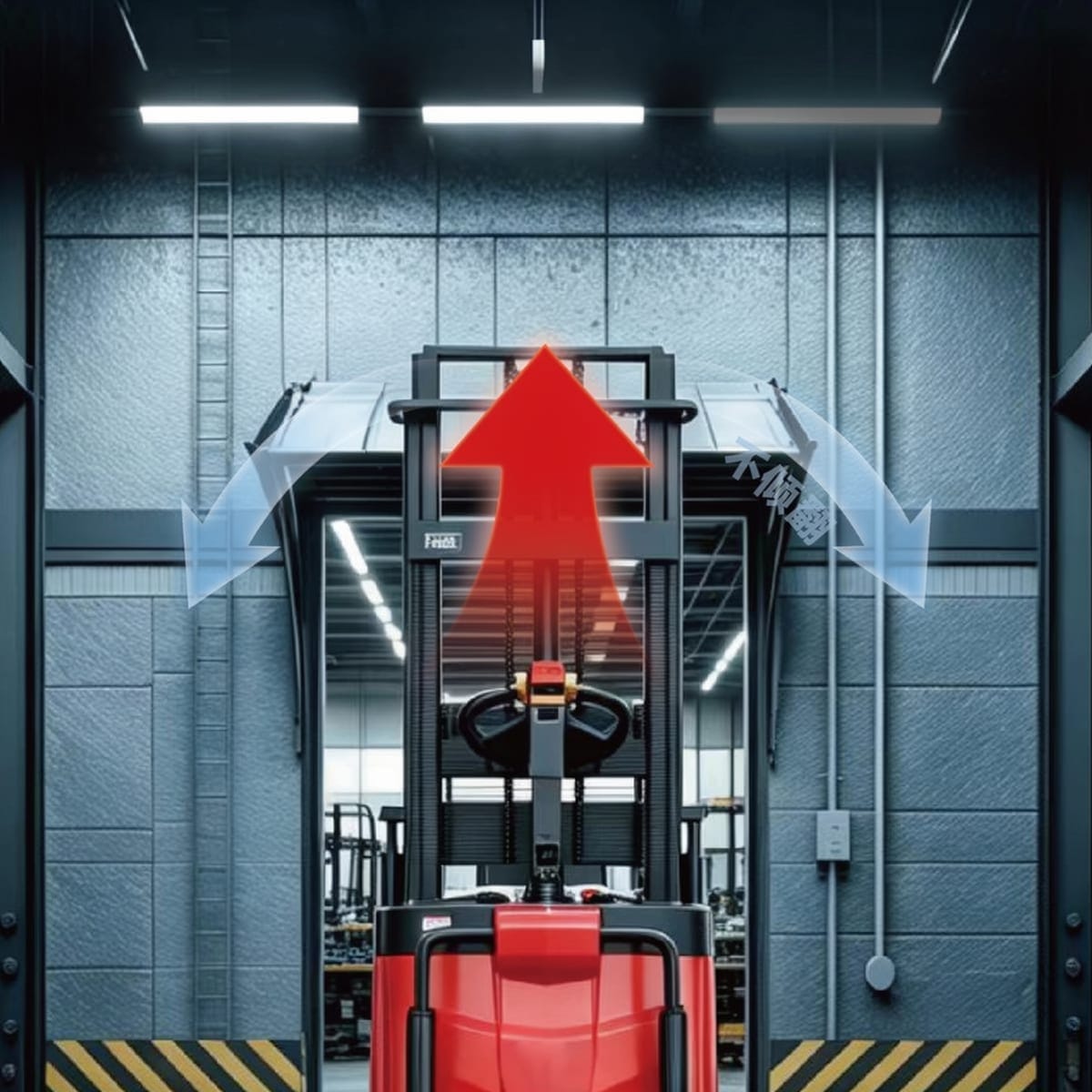

Free lift lets the forks rise inside the mast without increasing overall height — essential when working under low door frames or inside a container. If your building has low openings, say so before we compare routes.
Can the charger run on my site voltage?
Charger input voltage and plug type have to match your site. Tell us the voltage and phase and we will confirm what each route supplies instead of assuming a 220 V unit will work.
Related Electric Counterbalance Forklifts
Ready to check this machine for your site?
Send the load, lift height, battery strategy and destination port — we will confirm the configuration and compare routes.
